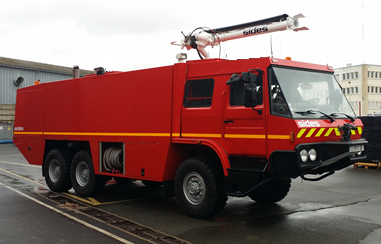

The SIDES 6X6 ARFF 105 vehicle truck designed to fight aircraft fires on the ground.

It can intervene on the airfield and its immediate surroundings, on runways and on or off surfaced roads, by day and night and on all other application where use of foam is required.

Customer benefits

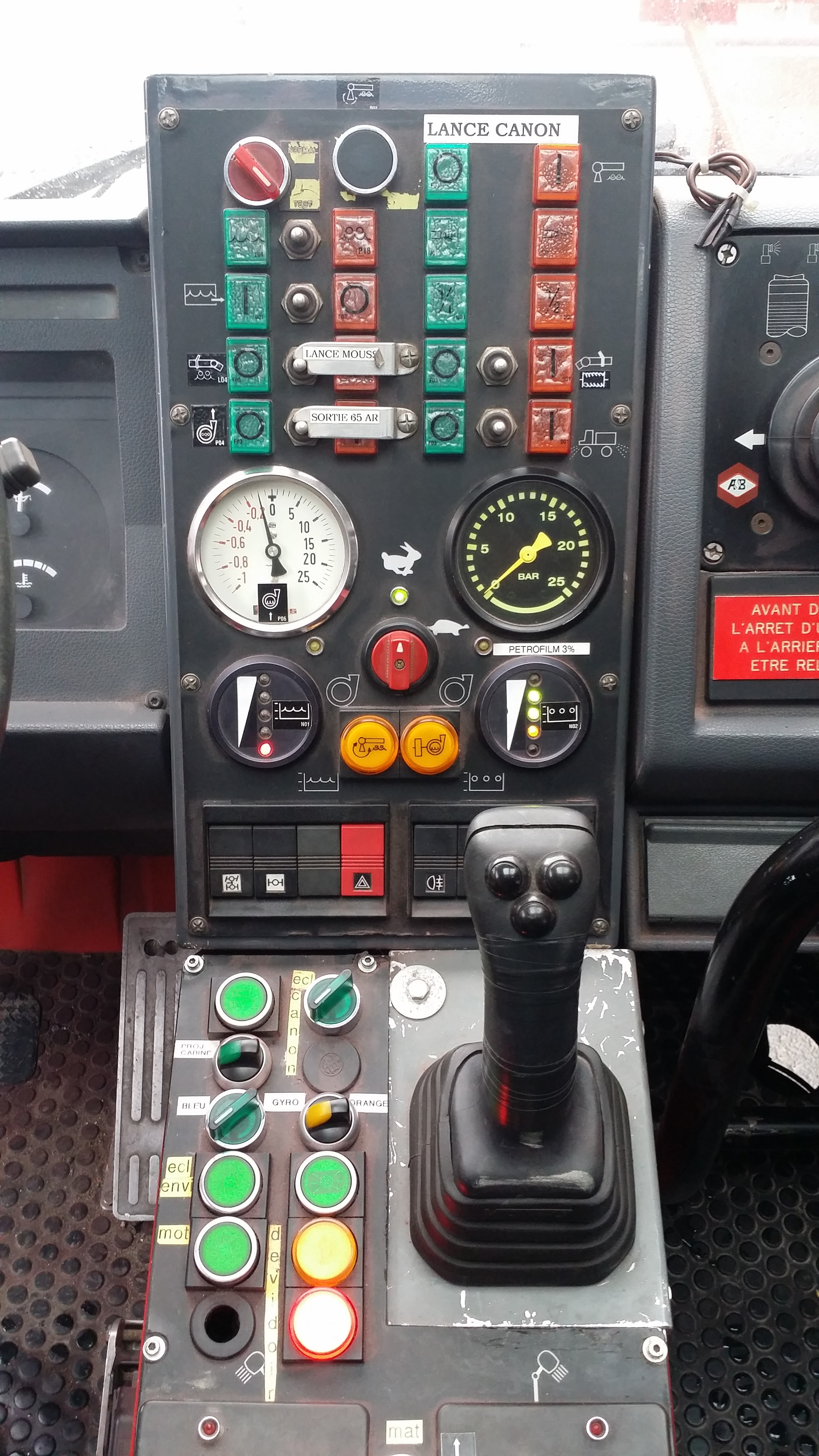

• Easy to use : all the firefighting system is remote controlled by our cabin central management system which simplify user operation
• Use of dedicated ARFF chassis designed for airport
• High storage capacity: large compartments are designed to place all requires accessories in a very ergonomic way
•  Cab is designed to offer large volume for driver and crew for circulation and clothing as well as enhanced ergonomic controls
• Use of SIDES high performance components: centrifugal pump, automatic proportioning system and special fire-fighting turret



Technical specification  (original)

Chassis

• RENAULT EE9-560 engine
• Power : 560 hp (412KW) at 1900 rpm
• Acceleration: < 35 sec
• Max speed: 105 km/h
• Static tip over angle: > 28°
• Automatic TWIN DISC TD61-1172 Gearbox with torque convertor

Cabin

• 2 doors – 3 people (1+2)
• 2 SCBA Seat Back for crew

Water pumping system

• SIDES Low Pressure Pump 28.250.12   –  5300 l/min – 14 bar
• Full Pump & Roll Mode available
• SIDES ARA 35.8 Primer for priming up to 7.5 meters
• One (1) pre connected side lines – 450 l/min each
• One (1) SIDES CM 15/30AH Monitor 3600 l/min – 65 m

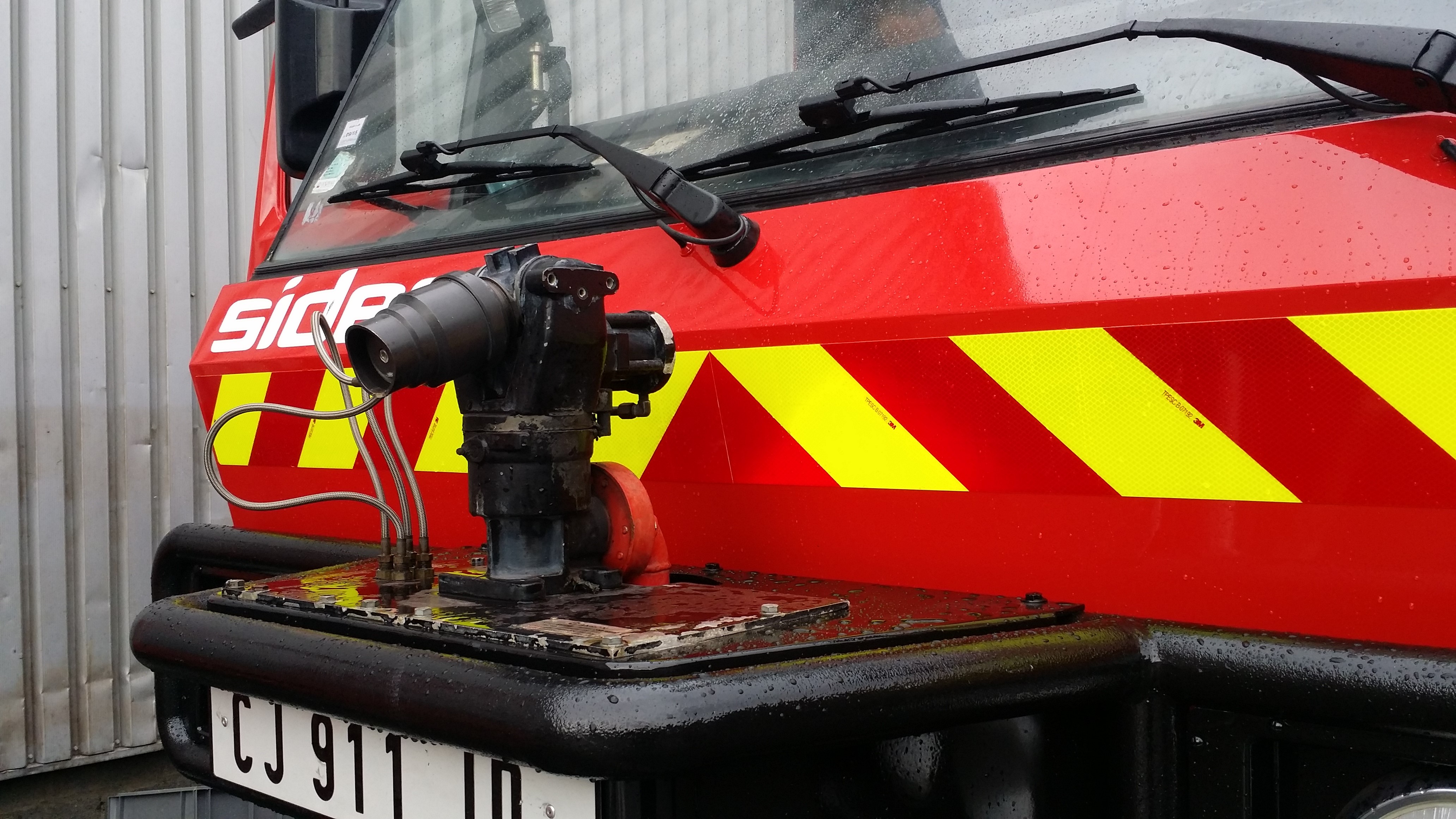

• One (1) front monitor Akron 3465 1100 l/min – 45 m
• One (1) undertruck nozzle system

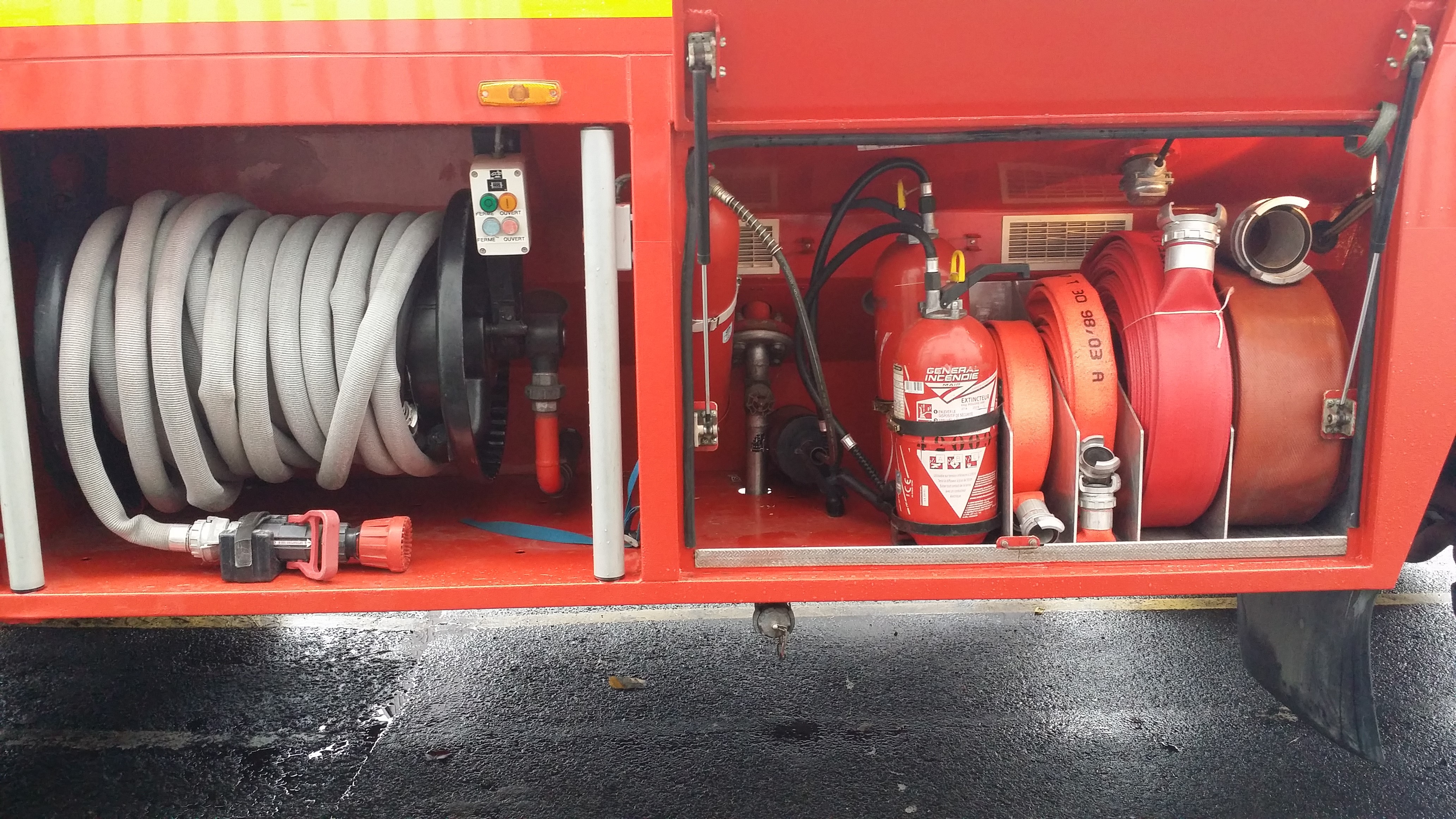

• One (1) water/foam hose Reel with electrical rewind

Water / foam tank

• GRP Material
• Water / Foam Capacity : 10225 liters
• Mounting on chassis by means of cone bearings

Foam proportioning system

• SIDES ADAFLOW System
• Mechanical Around the pump foam proportioner system
• Settings from 1 to 8% for all ARFF foam compounds

Superstructure bodywork

• Made of protected steel guarantying the rigidity and non corrosive superstructure
• Superstructure made with two (2) storage lockers
• The roof of the body is strengthened to hold the weight of two men at 250 kg total and covered with anti skid material



Painting

• Cabin and Superstructure in RAL 3000
• Reflective Stripping in lateral and rear face



Electric Equipment

• Standard road lightning
• 2 emergency beacon on the cabin roof and 2 on rear engine compartment
• 1 dual tone siren
• 4 scene lights
• 2 remote controlled floodlight
• 1 battery loading system

Powder system

• 250 Kg BC foam system

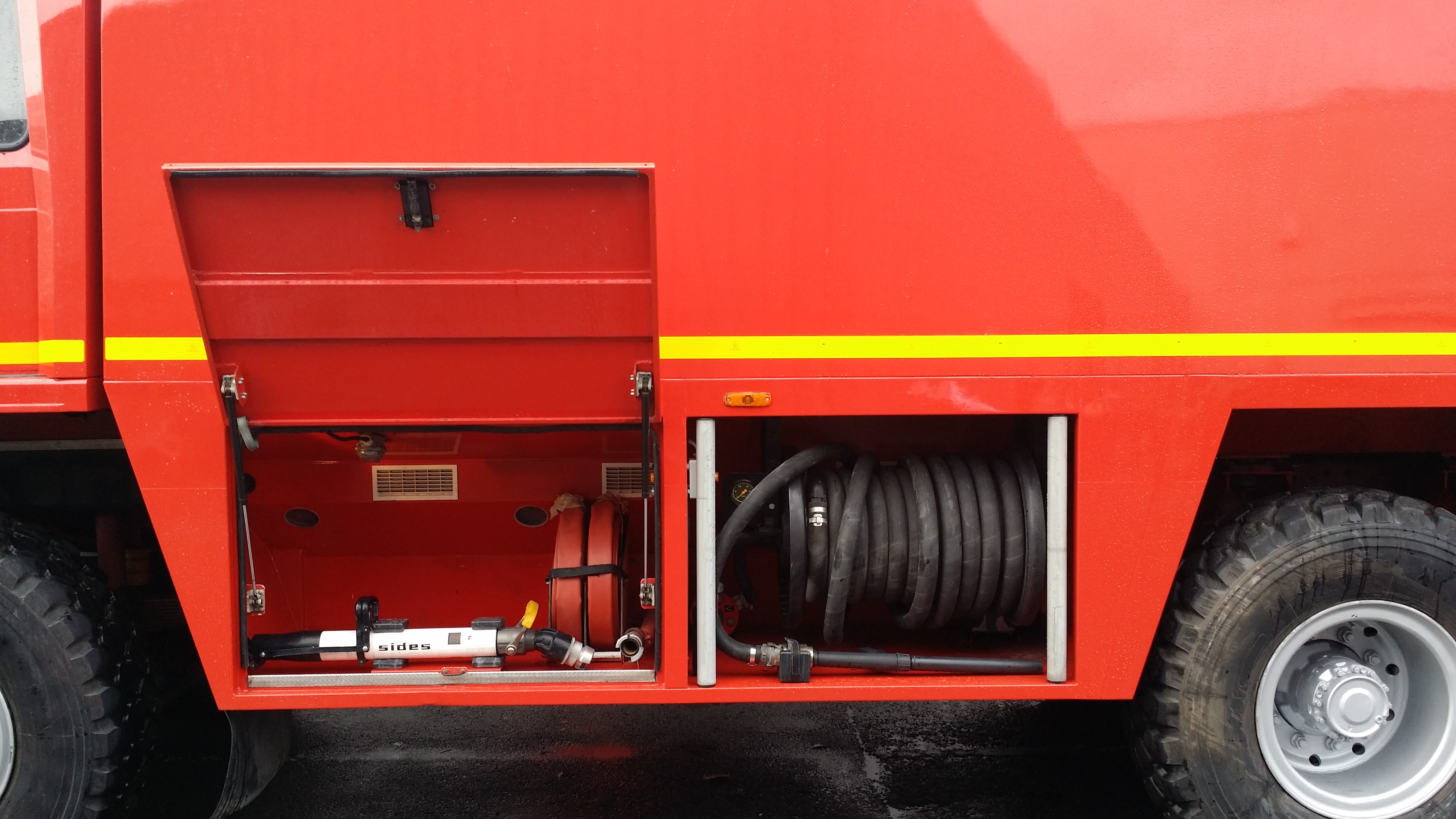

• One (1) Dry powder Hose Reel with 30m of hoses pre-connected 100 kg/min
